3.5mm thickness. ROUND DISC WITH SLOTTED CENTER USED FOR VALVE ADJUSTMENT. FITS ALL 113s UP TO 280SL WITH ENG. # 10-005464 & 12-009136. 12 PER CAR.
3.5mm THICKNESS. ROUND SHIM WITH SLOTTED CENTER USED FOR VALVE ADJUSTMENT. FOR 280SLs FROM ENG. # 10-005465 & 12-009137. 12 PER CAR.
4.5mm THICKNESS. ROUND DISC WITH SLOTTED CENTER USED FOR VALVE ADJUSTMENT. FOR 280SL FROM ENG.# 10-005465 & 12-009137. 12 PER CAR.Article code: v.nr.1300530353
4.5mm THICKNESS. ROUND DISC WITH SLOTTED CENTER USED AS VALVE ADJUSTEMENT SHIM. 12 PER CAR FOR ALL 230SL, 250SL, & 280SL UP TO ENG. # 10-005464 & 12-009136.Article code: v.nr.1800531952
PART NOT AVAILABLE AT THIS TIME. PART OF THR HOT START MODIFICATION. ALLOWS FOR A 1 SECOND FUEL DISCHARGE FROM THE COLD START VALVE IN WARM ENGINES TO IMPROVE HOT START. IF NOT PREVIOSLY INSTALLED, WILL ALSO NEED HARNESS # 54-2132.
WIRE HARNESS NEEDED TO INSTALL TIME LAG RELAY # 54-2131 IF NOT PREVIOUSLY INSTALLED.Article code: v.nr.1085401009
BUSHING MOUNTED BEHIND TIMING GEAR # 05-2011.Article code: v.nr.6150520150
RUBBER GASKET/SEAL FOR BETWEEN VALVE COVER AND CYLINDER HEAD.Article code: v.nr.1300160221
VALVE COVER TUBE - PLASTIC 230SL — Chassis 113.042 1963 - 1966 Base Convertible 2.3L L6 250SE — Chassis 111.023 1966 - 1967 Base Convertible 2.5L L6 250SE — Chassis 108/111 1966 - 1967 Base Coupe 2.5L L6 250SL — Chassis 113.043 1967 Base Convertible 2.5L L6 280SE — Chassis 108/111 1968 - 1969 Base All 2.8L L6
BRASS OR COPPER GUIDE IN CYLIDER HEAD FOR INTAKE VALVE. STANDARD SIZE 14X9X55. 6 PER CAR.Article code: v.nr.1300500024
BRASS OR COPPER GUIDE IN CYLINDER HEAD FOR INTAKE VALVES. REPAIR SIZE OF +.001 OVER STANDARD 14mm O.D. LARGER REPAIR SIZES ARE AVAILABLE UPON SPECIAL REQUEST.Article code: v.nr.1300500124
BRASS OR COPPER GUIDE IN CYLIDER HEAD FOR INTAKE VALVE. STANDARD SIZE 14X9X55. 6 PER CAR.

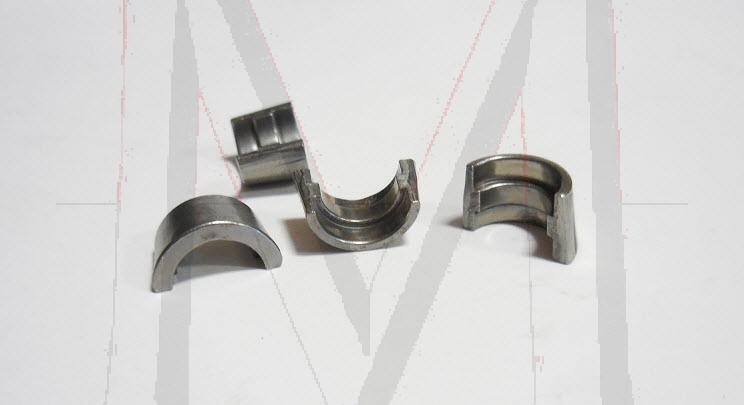

HALF MOON SHAPED COLLET TO RETAIN INTAKE & EXHAUST VALVE AT TOP SHAFT POINT OF VALVE. FOR 250 & 280SL, 2 PER VALVE, 24 PER CAR. WILL NOT FIT 230SL.Article code: v.nr.1150530026
HALF MOON SHAPED COLLET TO RETAIN INTAKE & EXHAUST VALVES AT TOP SHAFT SIDE OF VALVE. 230SL ONLY, 2 PER VALVE, 24 PER CAR.Article code: v.nr.1800530627

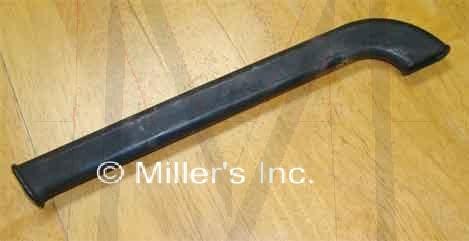

Rubber sleeve that bundles and protects water hose and breather line across top of engine from V/C to air intakeArticle code: v.nr.0079977782
3 Hole fan mount, used w/o fan clutch, long version.Article code: v.nr.1152001620

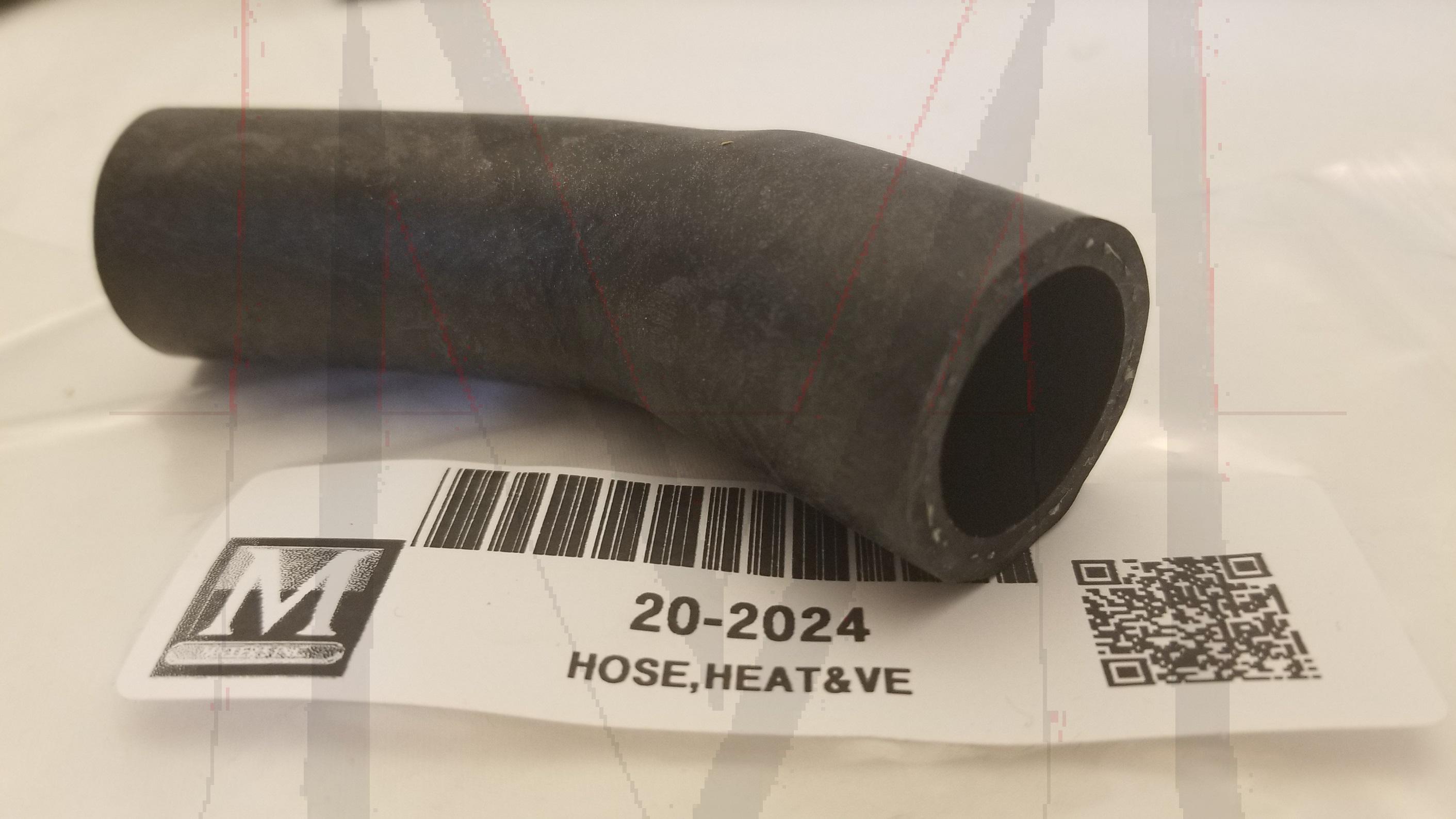

Angled, fitted hose from top of W/P housing.Article code: v.nr.1088310394
FOR 230SL ENGINES WITH 24mm DIAMETER WRIST PINS. CHECK CLOSELY AS SOME 230SL ENGINES WERE MODIFIED TO HAVE 25mm WRIST PINS.Article code: v.nr.1270380050
FOR 230 & 250SLs WITH 25mm WRIST PINS. CHECK CLOSELY AS MANY 230SL ENGINES ORIGINALLY HAD 24mm WRIST PINS.
FOR 280SL ENGINES ONLY, 25mm DIAMETER. WILL NOT FIT 230 & 250SL ENGINES.Article code: v.nr.1300380150
